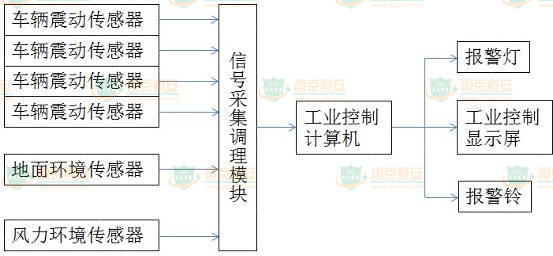

車輛內部藏匿有人的時候，藏匿者的心臟會產生有節律的跳動，此震動會傳遞到車輛的懸掛、車廂底部等位置，通過連接感應器和被測車輛，將此震動采集并通過數據線纜傳遞回數據分析設備，分析軟件進行分析，分析軟件運算范圍精確集中在心臟跳動的頻率范圍內，以這種震動分析為基礎，在顯示終端上可明確顯示是否有人存在，

在線訂購

When someone is hidden inside the vehicle, the hidden person's heart will produce a rhythmic beating, this vibration will be transmitted to the vehicle's suspension, the bottom of the carriage and other locations, by connecting the sensor and the vehicle under test, this vibration will be collected and transmitted back to the data analysis equipment through the data cable, analysis software for analysis, analysis software computing range precisely focused on the frequency range of the heartbeat, based on this vibration analysis, in the display terminal can clearly show whether someone exists, and accompanied by sound alarm.

感應方式：通過感應器感應被測物體傳導的有節律的心跳震動進行分析

感應目標：人類（藏匿者所處位置、姿態、身體狀況不對測試結果產生必然影響）

偵測車型：所有車型（轎車、客車、貨車、箱式集裝箱等）

感應器數量：車輛感應器 4個，地面感應器1個，提供IP66防塵防水認證。風力IEPE傳感器1個。

檢測時間：每次完成檢測時間≤30秒

顯示終端：觸摸屏工控機

報警模式：檢測到人藏匿時，聲音、燈號及明確的屏幕顯示報警。

軟件：界面友好的漢化軟件。

車輛數據管理功能：系統支持車輛出入管理功能，可對進出車輛實現登記、測試記錄、結果輸出、備份，登陸人員管理等功能

設備連接模式：進口電纜及線纜箱連接，線纜覆蓋物理測試距離不小于15米，線纜軸采用可彈回式，便于使用。

環境震動減弱功能：軟件內部設置環境因素減弱功能，可將環境影響通過軟件進行有效弱化

工作時間：可全天候24小時工作

供電方式：90v-260v交流電

操作人員：經過培訓后可實現單人操作

Sensing method: The rhythmic heartbeat vibrations conducted by the inductor to the object under test are analyzed.

Sensing target: human (the location, posture and physical condition of the person hiding does not necessarily affect the test results)

Detection models: all models (cars, buses, trucks, box containers, etc.)

Number of sensors: 4 vehicle sensors, 1 ground sensor, IP66 dust and waterproof certification provided 1 wind IEPE sensor.

Detection time: ≤ 30 seconds per completion of the detection time

Display terminal: touch screen industrial control computer

Alarm mode: sound, light signal and clear screen display alarm when human hiding is detected

Software: Chinese software with friendly interface.

Vehicle data management function: the system supports the vehicle access management function, which can realize the registration, test record, result output and backup for incoming and outgoing vehicles, and login personnel management, etc.

Equipment connection mode: imported cable and cable box connection, cable coverage physical test distance of not less than 15 meters, the cable shaft using a reboundable type, easy to use

Environmental vibration attenuation function: software internal setting environmental factors attenuation function, can be environmental impact through the software to effectively weaken

Working time: 24 hours a day

Power supply mode: 90v-260v AC power

Operators: single person operation after training
