一：功能介紹
1、精度：最高靈敏度在門的正中間可以檢測到一根大頭針（或者1/2）回型針，可以做到走一百次檢測到一百次，不會漏報和串報。也可以排除皮帶扣、皮鞋、文胸等的影響，檢測到150克以上的銅、鋁、鋅等金屬或者管制刀具和槍支。
2、六區位顯示：產品分成六個防區，可疑物體能在每個區域準確顯示。
3、統計人數：雙側對射紅外可以檢測到通過人數和報警人數，走100人計100人,不會多計或者少計。
4、防震設計：站在門的中間，用手拍兩側門板，門不會誤報。
5、靈敏度調節：靈敏度可以根據需要調整，共有一百級靈敏度。
6、門體材質：防火板，外加防水膜，里面有鋁合金支柱，不變形，防火、防潮。
7、面板顯示：高亮度數碼顯示通過人數和報警人數以及報警區位。
8、聲光同時報警，可以在門頂部顯示報警區域。
9、可以選配遙控器對參數進行控制。參數可設密碼保護，使非授權人員無法操作。
10、預留通訊接口，可以與電腦、攝像頭、三軋輥等連接。
11、針對各種使用環境的電磁干擾，整個系統采用了電磁兼容設計，并使用DSP處理器對違禁物品的采樣信號進行相關運算和濾波，從而使得整套設備具有較好的電磁抗干擾能力。
12、可設定多組工作頻率，使得多臺設備并排相鄰工作時，互不干擾。
13、對心臟起博器佩帶者、孕婦、磁性介質等無害。

A: Function introduction

1, accuracy: the highest sensitivity in the middle of the door can detect a large head pin (or 1/2) back to the needle, you can do a hundred times to go to detect a hundred times, will not miss and string report. Can also exclude the impact of belt buckles, leather shoes, bras, etc., to detect more than 150 grams of copper, aluminum, zinc and other metals or control knives and firearms.

2、Six-zone display: The product is divided into six defense zones, and suspicious objects can be accurately displayed in each zone.

3, the number of statistics: double-sided infrared can detect the number of people passing and the number of alarms, walking 100 people counting 100 people, will not be over-counted or under-counted.

4, anti-shock design: stand in the middle of the door, with hands on both sides of the door panel, the door will not false alarm.

5, sensitivity adjustment: sensitivity can be adjusted according to needs, a total of one hundred levels of sensitivity.

6, door body material: fireproof board, plus waterproof film, aluminum alloy pillar inside, not deformed, fireproof, moisture-proof.

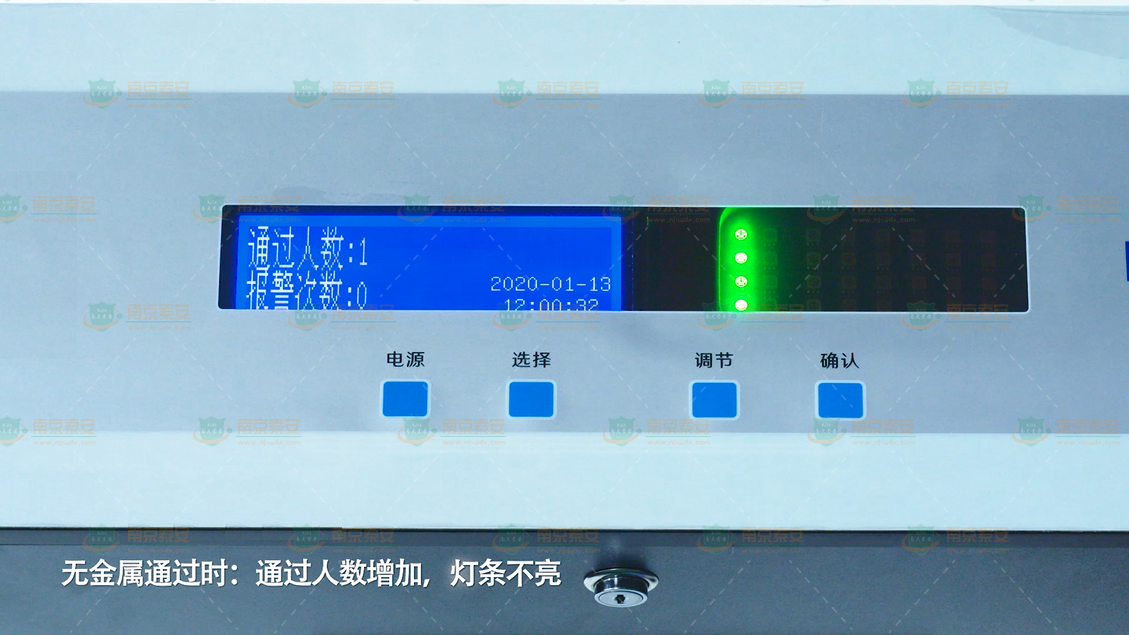

7、Panel display: high-brightness digital display of the number of people passing through and the number of alarms and alarm zones.

8, sound and light at the same time alarm, can display the alarm area at the top of the door.

9、Remote control of parameters can be optional. Parameters can be password protected so that unauthorized personnel cannot operate.

10、Communication interface is reserved, which can be connected with computer, camera, three rollers, etc.

11、For the electromagnetic interference of various use environments, the whole system adopts electromagnetic compatibility design, and uses DSP processor to perform relevant operation and filtering on the sampling signal of prohibited items, thus making the whole set of equipment with good electromagnetic anti-interference ability.

12、Multiple sets of working frequencies can be set, making multiple devices work side by side adjacent to each other without interference.

13, harmless to cardiac pacemaker wearer, pregnant women, magnetic media, etc.

二：技術標準
★ 電器參照EN60950安全標準執行。
★ 輻射參照EN50081-1標準執行。
★ 抗干擾參照EN50082-1標準執行。
★ 嚴格執行現行通過式金屬探測器國家標準。
★ 全面通過ISO9001質量管理體系認證。
★ 全面通過歐盟CE認證。

B: Technical standards:

★ Electrical appliances refer to EN60950 safety standards.

★ Radiation refer to EN50081-1 standard

★ Anti-interference refer to EN50082-1 standard implementation.

★ Strictly implement the current national standards for pass-through metal detectors.

★ Fully passed ISO9001:2000 quality management system certification.

★ Fully passed the EU CE certification.

三：技術參數
1、外接電源： 215V - 230V 　　50/60Hz
2、功耗： 35W
3、工作環境： -35℃─55℃
4、運輸全重：約95kg
5、工作頻率：根據安裝環境自行調節
6、整機重量：約90kg
7、外形尺寸： (mm)2220(高) x 820(寬) x 522(深)
8、通道尺寸： (mm)2000(高) x 700(寬) x 522(深)

C.Technical parameters

1、External power supply: 215V - 230V 50/60Hz

2、Power consumption: 35W

3、Working environment: -35℃─55℃

4、Transportation weight: about 95kg

5、Working frequency: self-adjustment according to the installation environment

6、Weight of the whole machine: about 90kg

7、Exterior dimensions: (mm) 2220(H) x 820(W) x 522(D)

8、Channel size: (mm) 2000(H) x 700(W) x 522(D)
