無障礙超高清固定地埋式高配車底掃描成像系統（可配自動清潔模塊）Accessible Ultra HD Fixed Underground Highly Equipped Vehicle Chassis Scanning Imaging System(available with self-cleaning module)

無障礙通過式車底掃描成像系統是一套集自動檢測車輛并對車輛底盤進行圖像采集、顯示、拼接、抓拍匯總、比對報警、自動環控為一體的車輛安檢系統。該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入政府機關、軍事管理、銀行庫區、車站碼頭等重要安全保護場所；防止車底攜帶毒品與槍支彈藥等危險品、非法走私物

在線訂購

產品信息

無障礙超高清固定地埋型高配掃描成像系統是一套集自動檢測車輛、并對車輛底盤進行圖像采集、顯示、拼接、抓拍匯總、比對報警、自動環控為一體的車輛安檢系統。

該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入政府機關、軍事管理、銀行庫區、車站碼頭等重要安全保護場所；

防止車底攜帶毒品與槍支彈藥等危險品、非法走私物乃至可疑人物通過海關、邊防檢查站，

防止被關押人員潛逃出監獄、看守所、戒毒所等；

同時可對列車、汽車等車輛底盤進行交通安全檢測及車況質量檢查評估等應用。

Product Information

Accessible Ultra HD Fixed Underground Highly Equipped Vehicle Chassis Scanning Imaging System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

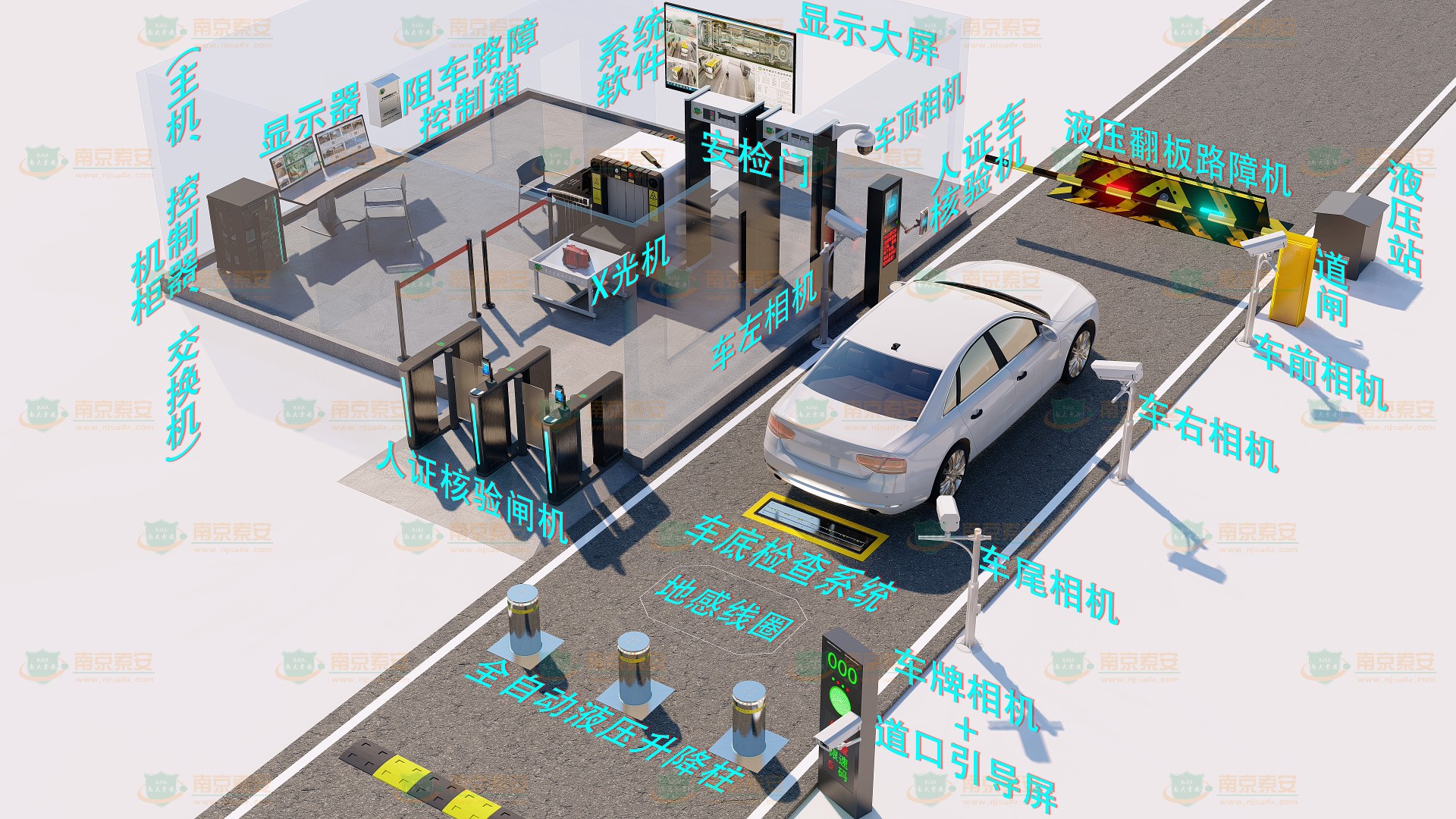

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions. 無障礙構成.png

應用場景：

1、監獄、看守所、戒毒所等的出入口防逃檢查；

2、機場、政府、銀行庫區、大使館、港口、碼頭、車站、軍隊、公安等重點場所；重點部位的停車場入口；大型會議、運動會等活動的車輛出入口的安全防范、反恐檢查；

3、海關、邊檢口岸的檢查卡口防走私、反偷渡檢查；

4、交通安全檢查站、車輛檢測中心、4S店維修車間、新能源換電站等的車輛性能檢測線。

Application Scenario：

1，Escape prevention inspection at the entrances and exits of prisons, detention centers and drug rehabilitation centers;

2，Airports, government, bank district, embassies, ports, docks, stations, military, public security and other key places; Parking lot entrances at key locations; Security precautions and anti-terrorism checks for vehicle entrances and exits of large conferences, sports meetings and other activities;

3，Customs, border inspection bayonet anti-smuggling, anti-smuggling inspection;

4，Traffic safety checkpoints, vehicle testing center, 4S shop maintenance workshop, new energy power station and other vehicle performance testing line.

產品介紹

1.拍攝車輛寬度： ≥4500mm；視場角度：≥180o；

2.拍攝車底高度：0~4500mm（適應不同底盤高度的車輛）；

3.車輛通過速度：（建議）1-120Km/h，正常情況下出入口車速控制≦30KM/h；

4.圖象采集方式：車輛檢測系統自動觸發；

5.圖片類型：彩色JPG等格式；圖片失真：小于5%；

6.車底圖片分辨率： 4096*n；成像圖片大于4000萬像素；

7.車底成像顯示時間：< 1秒；圖像存儲或載入時間：< 1秒；

8.車底成像設備：采用高強度抗碾壓并單體密封設計；車底設備承重：≥55噸；

9.照明組件：≥6顆單體密封LED面光源；使用壽命：≥80000h；

10.車底成像設備表面結構采用方形高強度軍用特級鋼板護罩；底盤成像設備多重密封設計：防水、防塵、防潮、防霧；防塵防水等級：IP68(完全防塵、防水浸泡)；

11.操作系統支持：WINDOWS 7、10。

12.系統界面支持語言：可為全球用戶定制中文、英文、俄文、德文、法文、阿拉伯文等多語文版本；

13.具有車輛全方位監控抓拍與錄像、多制式車牌識別、自動檢測狀態顯示、自動信息報播與交通信號燈指示、人證信息識別、全方位成像對比、人車證記錄關聯合成顯示、道閘與反恐路障聯動控制、白黑名單自動識別、各種高、低底盤成像檢測、超長車顯示模式切換、豐富的圖像后期處理功能、車重檢測與箱號識別、支持生命探測儀及整車X光機檢測信息集成等；

14.支持多種道口管理模式：單向車道、進出混合車道、進出獨立雙向車道、多車道，并且支持進出場車輛信息管理；

15.工作環境：系統具有自動環境溫度濕度探測及自動調節控制系統，能在-50℃~85℃的室內外全天候環境下正常工作。

Product introduction

1. Shooting vehicle width: ≥4500mm; field of view angle: ≥180o;

2. Shooting vehicle underbody height: 0~4500mm (adapted to vehicles with different chassis height);

3. Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances, the entrance and exit speed control ≦ 30KM/h;

4. Image acquisition method: automatically triggered by vehicle detection system;

5. Picture type: color JPG and other formats; picture distortion: less than 5%;

6. Vehicle chassis picture resolution: 4096 * n; imaging pictures greater than 40 million pixels;

7. Vehicle chassis imaging display time: < 1 second; image storage or loading time: < 1 second;

8. Vehicle chassis imaging equipment: the use of high-strength anti-roller and monomer sealing design; equipment weight: ≥ 55 tons;

9. Lighting components: ≥ 6 single sealed LED surface light source; service life: ≥ 80000h;

10. Vehicle chassis imaging equipment surface structure using square high-strength military-grade steel plate shroud; vehicle chassis imaging equipment multiple sealing design: waterproof, dustproof, moisture-proof, anti-fog; dustproof and waterproof grade: IP68 (completely dustproof, water immersion);

11. Operating system support: WINDOWS 7, 10.

12. System interface support language: can be customized for global users of Chinese,


功能概述：

1、4K超高清完整車底成像，可檢測0.5mm細微物質或特征；

2、可自動防碾壓自保護式升降，可自動清除沙塵、雨雪等雜物；

3、地面1CM的安裝高度并雙向緩坡式可近乎無障礙通行受檢車輛可無撞擊影響；

4、智能全視角車底補光照明及車底盤180度全景成像；

5、全304不銹鋼精加工，抗重車碾壓56噸以上，并可防水IP68泡水中60小時，配置溫控系統可報警聯動散熱、除霧防冷凝；

6、可集成車牌、車號、箱號等識別，并可支持多個品牌的車底、車牌等采集相機接入，便于系統集成；

7、可采集安檢車道內全景及車頂、車兩側及底盤多路視頻，可智能拍照并關聯保存;

8、可集成隨車人員信息與物品安檢信息并關聯記錄查詢；可啟用智能判圖后異常報警聯動閘門、路障等周邊設備協同工作；

9、可多個車道集成顯示并上傳中央管理平臺；

10、可國產操作系統、嵌入式系統環境下運行；

11、支持多國語言界面切換。

Function overview：

1, 4K ultra HD complete underbody imaging, can detect 0.5mm fine substances or features;

2, Can automatically prevent rolling self-protection type lifting, can automatically remove dust, rain and snow and other debris;

3, The ground 1CM installation height and two-way gentle slope can be almost barrier-free access to the inspected vehicle can have no impact;

4. Intelligent full-view underbody lighting and 180-degree panoramic imaging of chassis;

5, All 304 stainless steel finishing, resist heavy car rolling more than 56 tons, and can be waterproof IP68 soak in water for 60 hours, equipped with temperature control system can alarm linkage heat dissipation, fog and condensation;

6, Can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

7, Can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8, Can integrate the vehicle personnel information and items security information and associated record query; It can enable the abnormal alarm linkage gate, barricade and other peripheral equipment to work together after intelligent judgment;

9. Multiple lanes can be integrated display and upload to the central management platform;

10, Can run under domestic operating system, embedded system environment;

11, Support multi-language interface switching.

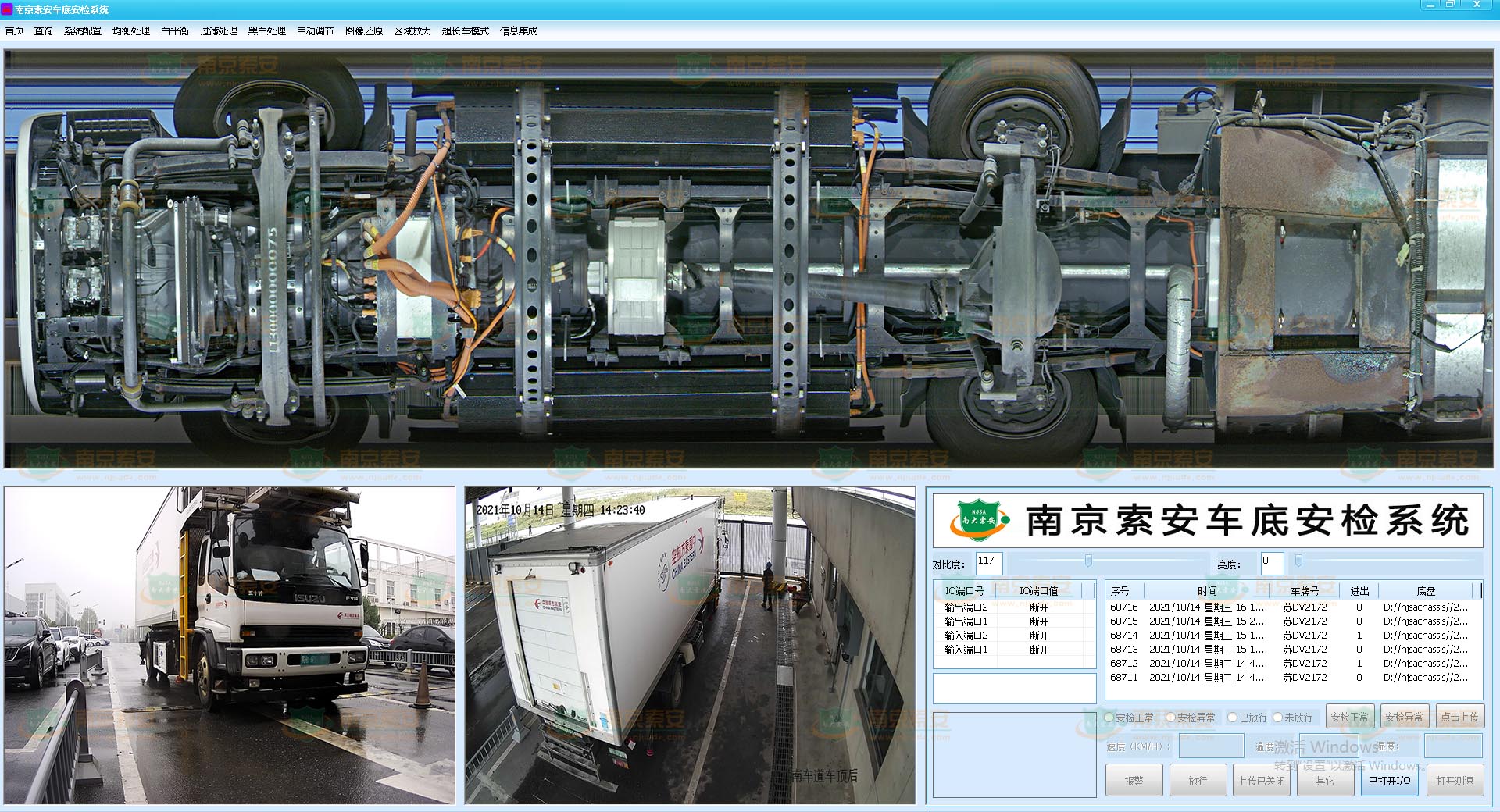

1A 無障礙掃描 (1).jpg
